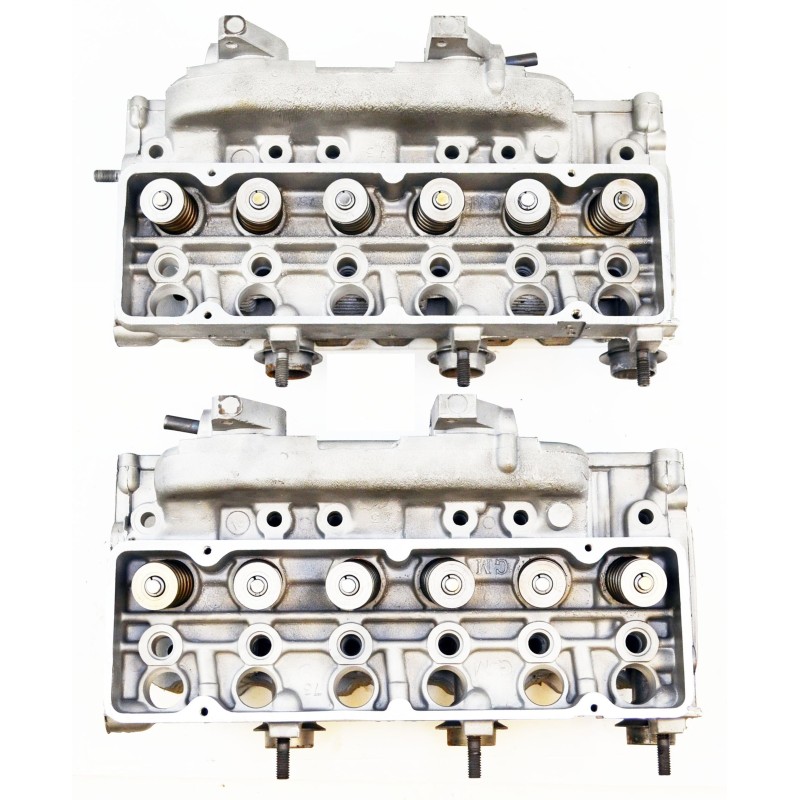

REMANUFACTURED HEADS - 1965 140 HP

Set of REMANUFACTURED 1965 140 HP

cylinder heads.

Part No's. 3856728

This set of left and right side cylinder heads

are not simply "rebuilt" using old parts

and staking the seats.

This set of professionally remanufactured heads includes:

New intake and exhaust valves.

New hardened 4044 chrome moly

intake and exhaust deep valve seats.

New bronze alloy valve guides.

New HD dual valve springs.

Machining and repairs include:

Hot tank and glass-bead cleaning.

Thread cleaning weld repair w/rethread

or insert installation where required.

Thread repairs may include spark plugs,

valve cover and sheetmetal bolt holes.

Valve cover rails are milled flat.

Head gasket areas are surfaced.

Valve and seat grinding and final assembly.

NOTE: each head may require different thickness head gaskets

due to machining.

If so, recommended thickness will

be notated on head.

Thermostats and carb studs NOT included.

NOTE:

Both heads have previous water damage from storage.

This can be seen on the top front and rear fins on the drivers side head.

There is also a crack along the top rear fin on the drivers side head.

The passenger side has previous water damage

at the top front fin.

None of this will affect performance and will

not be visible after final assembly.

Please see photos with red arrows.
